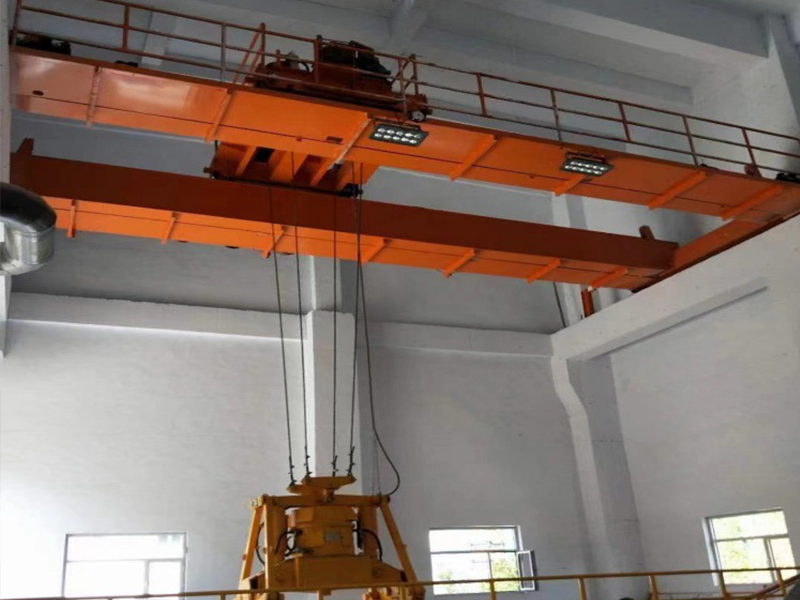

Die Gripper Overhead Crane for Automotive Mold Handling — Enhanced Product Description
Short Description
The Die Gripper Overhead Crane is designed specifically for automotive stamping workshops where heavy dies require frequent, safe, and accurate handling. Compared with conventional hook-and-sling lifting, the die gripper system provides controlled gripping, precise positioning, and efficient die change operations. It is suitable for handling stamping dies up to 66 tons and can be integrated into modern press lines and automated production systems.
| Technical Specifications | |
| Parameter | Specification |
| Product Type | Die Gripper Overhead Crane |
| Application | Automotive Die & Mold Handling |
| Maximum Load Capacity | Up to 66 t |
| Die Width | 1,650–4,850 mm |
| Die Height | 1,200–2,850 mm |
| Crane Classification (Load Cycles) | EN 13001 U7 |
| Crane Classification (Load Collective) | EN 13001 Q5 |
| Hoist Classification | FEM M7 / EN A7 |
| Trolley Type | Two Coupled Open Winches |
| Gripper Duty Cycles | 2 Million |
| Maximum Lifting Height | Up to 40 m |
| Lifting Speed (Loaded) | 12 m/min |
| Lifting Speed (Empty Gripper) | 18 m/min |
| Trolley Travel Speed | Up to 100 m/min |
| Bridge Travel Speed | Up to 40 m/min |
| Control Method | Radio Remote / Pendant Control |
| Design & Components | |
| Item | Description |
| Lifting System | Die gripper lifting device |
| Gripping Method | Dedicated die gripper instead of hooks or slings |
| Hoisting Mechanism | Two coupled open winches |
| Positioning System | Precision positioning system |
| Load Handling | Balanced load suspension |
| Rotation Function | Optional die rotation for alignment |
| Safety System | Redundant safety system with sensors and PLC |
| Control | Radio remote control or pendant control |
| Core Features | |
| Feature | Description |
| Precision Die Handling | Designed for accurate die positioning during mold change. |
| Stable Transportation | Minimizes load swing during lifting and travel. |
| Fast Die Exchange | Supports frequent mold changes in stamping workshops. |
| Intelligent Safety | Equipped with redundant sensors and PLC-based control. |
| Offset Load Handling | Suitable for dies with eccentric load centers. |
| Automation Ready | Can be integrated with automated press line systems. |
| Compact Storage Support | Enables handling within compact mold storage layouts. |
Typical Applications
Automotive stamping workshops
Die storage systems
Press line die changing
Tooling maintenance areas
Mold storage and retrieval
Automotive manufacturing plants
Frequently Asked Questions
What is a die gripper overhead crane?
A die gripper overhead crane is a specialized overhead crane designed to lift, transport, and position heavy stamping dies using a dedicated gripper instead of conventional hooks or slings.
What is the maximum lifting capacity?
The die gripper system can handle loads of up to 66 tons, depending on the application and crane configuration.
Which industries use die gripper cranes?
They are primarily used in automotive stamping workshops for die changing, mold storage, and press line operations.
What control methods are available?
The crane can be operated using radio remote control or pendant control.
